Rinser

• 4 rinsing nozzles with electromechanical turner;
• Activation of the rinser through 2 presence sensors;
• Operator-programmed rinsing and drain time;
• Peracetic acid, ozone or alcohol can be used to clean the bottles;

Isobaric filling machine

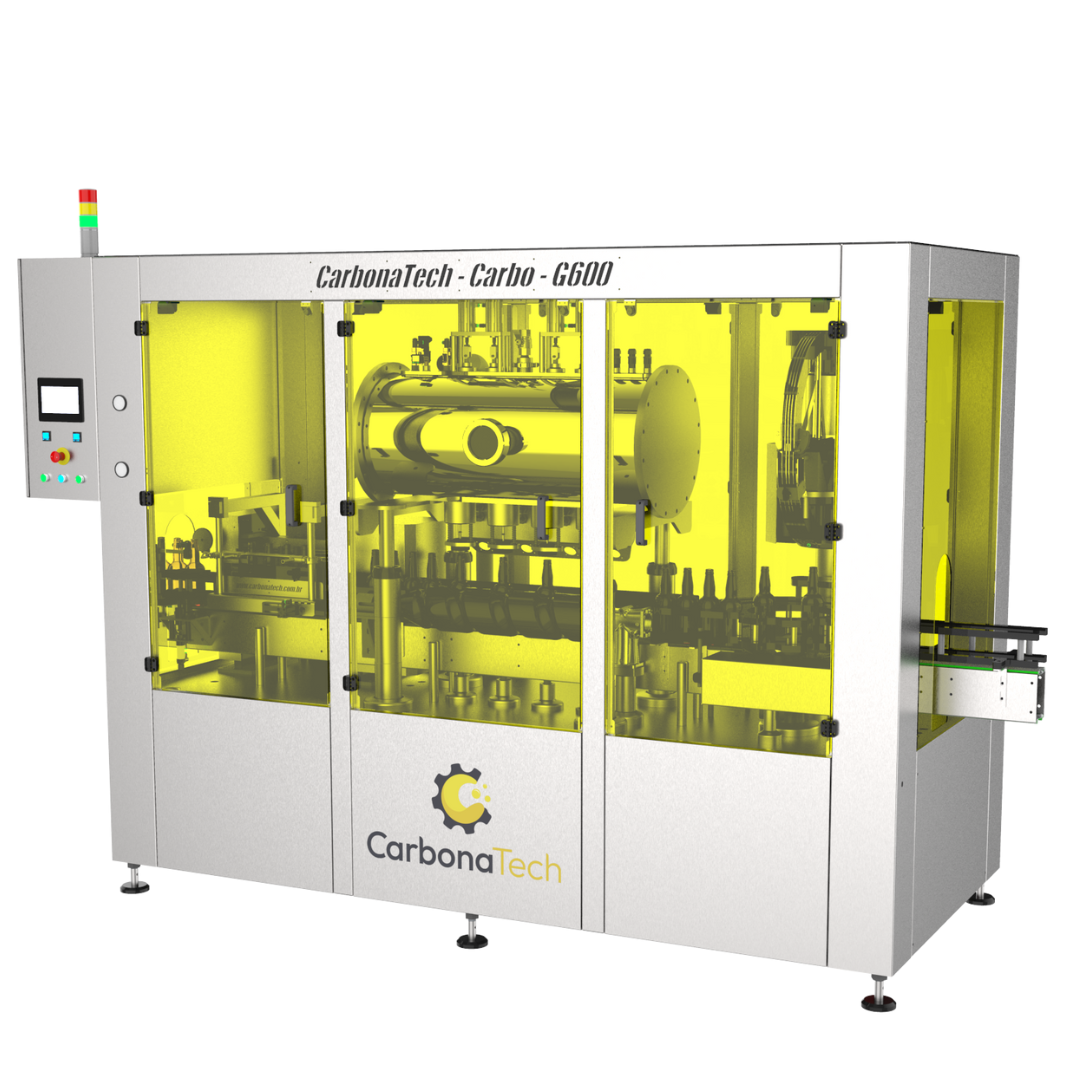

• Triblock filling machine for bottles (Rinser/Filling/Capper);
• Carbon steel base SAE 1020 painted in epoxy and top coat in stainless steel AISI 304 polido ao brilho;
• Watertight machine with waiting for inert gas flow system;
• 4 isobaric filling valves, made of stainless steel AISI 304, engineering plastics and gaskets made of non-toxic material;, engineering plastics and gaskets made of non-toxic material;
• Tank built in stainless steel AISI 304 polished (internal and external), with automatic level control through digital level electrodes, carbon dioxide input regulator, digital pressure gauge, pressure relief valve, safety valve and ball valve for product input;
• Number and times of vacuums programmable by the operator;
• Quantity and time of sniffs (pressure reliefs) programmable by the operator;
• Working pressure and tank loading programmable by the operator;
• Exclusive glycol coil in the filling tank to keep the beer cold;
• Electric tank height adjustment activated by IHM;
• Worm thread for positioning bottles in filling valves;
• Exclusive inspection lamps activated automatically at the time of filling;
• Tank inspection display on the front, for better operator viewing;
• All filling steps done automatically.

Automatic capper

• 1 Capping head with electromechanical drive;
• Capping done using a cam driven by a gear motor;
• Height adjustment for various types of bottles;
• Vibrating lid classifier with sensor that stops when the chute is full;
• Activation of the capper made by presence sensor, only works when bottles are present;
• Servomotor-driven positioning star;
• Stainless steel head AISI 304 with magnets for precise positioning of the lids;
• Adjustment shaft made entirely of stainless steel AISI 304.
